Paralymipcs: Space-tech at the Paralympics - world record
Wojtek Czyz running with a space-tech enhanced prosthetic leg, set a new world record in Athens Saturday in 200 m sprint, adding another gold medal to his 100 m sprint gold from last Tuesday. He completed the 200 m sprint in 26.18 seconds, 22 hundreds of a second faster than the previous world record of 26.40 seconds in June 2002.
German Czyz, trusting in space technology and expertise to help him win, won his first gold at the 2004 Paralympics Tuesday 21 September, finishing the 100 m sprint in 12.51 seconds, a new Paralympics record, 10 hundreds of a second faster than that of Sydney 2000. In addition to the 100 m and 200 m sprints he will tonight compete in the long jump, his favourite sport.
Czyz lost part of his left leg in a sports accident three years ago and in order to continue his passion for "everything that has to do with sport", this meant that he had to use a prosthesis.
"I had a big problem with my old prosthesis as the connecting angle between the knee and the lower-leg spring often broke when I was doing long jump," he explains. Not only was this a practical problem, even more important it created a psychological barrier. "When I exercised I was always worried that my artificial leg wouldn't hold, and I never knew how far I could push myself and the prosthesis when jumping."
Space materials to the rescue
Most disabled people have to rely on 'standard' prostheses for everyday use and there is a very limited market for custom-made components for sports activities. The standard prostheses used by athletes could be better optimised for weight reduction and designed for the load conditions encountered in competitive sports.
ESA's Technology Transfer and Promotion Office, together with MST Aerospace, the German technology transfer broker managing ESA's Technology Transfer Network, became aware of the athlete's problem through reports on German TV and in the press. Following contacts with Czyz to identify his most crucial technological needs ESA and MST agreed to look into the problem.
"The objective," says Pierre Brisson, Head of ESA's Technology Transfer and Promotion Office "was to find solutions based on space technologies for disabled people to help them participate in sports at competitive levels as well as enjoy a better quality of life."
Together with Wojtek Czyz three areas that needed improving were identified: the artificial limb itself, the fit and training conditions.

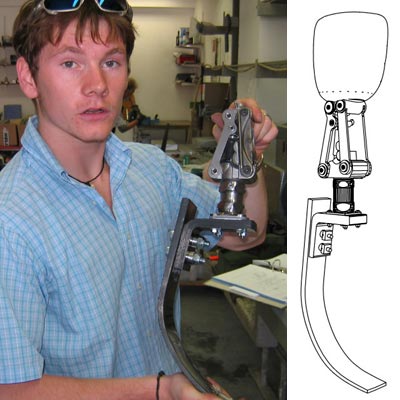

Biomedical procedures determined which parts of the prostheses could be improved for running and jumping and it became clear that the major problem was the knee joint element, namely the L-shaped bracket between the artificial knee and the carbon feather, which replaces the lower leg. On behalf of ESA, MST contacted ISATEC, a German company with experience in the use of high-performance materials in space projects, such as high-strength aluminium alloys, titanium and carbon-fibre-reinforced-plastics (CFRP). This company designs and analyses structures in CFRP used for rocket motors and the Alpha Magnet Spectrometer (AMS) experiment on the International Space Station (ISS). AMS is a detector designed for extraterrestrial study of antimatter, matter and missing matter. Using the same techniques and expertise, ISATEC analysed and optimised the L-shape bracket to improve the artificial limb for use in competitive sports.
"Detailed analysis suggested different solutions for different sports, each optimised for a specific use," explains Johannes Schmidt, Project Manager at MST. "For sprinting a bracket manufactured from a high-strength aluminium alloy was developed, the material used by ESA in its AMS experiment." "For long jumping the situation is different and a composite bracket was made out of carbon fibre and fabric layers," continues Johannes Schmidt. "After feedback from the athlete the first version was altered and a softer second version constructed."
The layer-by-layer stress analysis carried out on more than 40 unidirectional and fabric plies was particularly important as it ensured that the material selected for the bracket was strong enough to support the extra load during long jump. The new more stiff and resistant L-shape bracket is both lighter and stronger, providing athletes with greater security while exercising.
"Only many years of work using and optimising these special materials for use in space made it possible to produce the high performing brackets for Czyz's prosthesis," says Schmidt.
Czyz also told MST that he always had problems fitting the prosthesis to his leg. "Depending on my general health, the size of my stump can widen or narrow; making it difficult to attach the prosthesis securely. It has even fallen off during some training sessions."
After discussion with the European Astronaut Centre (EAC) and the European Healthcare Network, created by ESA to develop, promote and commercialise solutions for healthcare and wellbeing derived from space research and development, the ESA Healthcare Network's Manager, Filippo Ongaro, suggested using the Percutaneous Electrical Muscle Stimulator (PEMS) to prevent further muscle atrophy and increase muscle mass. PEMS was developed and manufactured by the Swiss company Syderal to prevent the effects of microgravity on astronauts particularly muscle atrophy and accompanying effects like bone mineralization and cardiovascular de-conditioning. In 1996 PEMS I flew on the Space Shuttle and PEMS II is planned to be delivered to the ISS next May.
In June this year ESA's Human Spaceflight Directorate provided the PEMS II training device and it was installed at the German Sports University in Cologne (DSHS) to help Czyz increase his muscle mass and reduce atrophy in the leg. The training was guided by Professor Narici of the Manchester Metropolitan University who already performed intensive research with PEMS I and II, Dr Zange of the Institute of Aerospace Medicine at the German Aerospace Centre (DLR) supported by Dr Schneider and Dr Abel from the Institute of Motor Control and Movement Technique at DSHS, and Prof Maffulli from Keele University School of Medicine. DLR also made available test facilities in Köln Porz.
"I was able to train for 10 weeks with PEMS. This improved the muscle mass of my leg so that I no longer have problems fitting my prosthesis. Even when I am not well, the muscle mass of my leg remains the same," says Czyz. For training purposes the athlete wore a training suit developed by the Italian company Grado Zero Espace. The fabric consists of a shape memory membrane based on a polymer used in space applications for collapsible wheels on planetary rovers as well as for deployable space structures.
Czyz holds the world record in long jump and is one of the favourites for a medal at the Paralympics long jump tonight. "Taking part in the Olympics is nerve-wracking as it is not the same as jumping at home. In 2003 I beat the world record with a 5.85 metre jump and with the redesigned parts in the prosthesis my jumps have increased by 20 cm. Hopefully I can make a new Olympic record in Athens by passing 6 m."
